Ultrasonic Generators: How They Work and How to Select the Right System
Overview Summary
- Ultrasonic generators convert standard electrical power into high-frequency energy used in ultrasonic cleaning
- They control key parameters such as frequency, power output, and waveform
- Generator performance directly impacts cavitation intensity and cleaning effectiveness
- Advanced features like frequency sweep and modulation improve cleaning uniformity
- Proper generator selection ensures compatibility with transducers and system requirements
- Used in new systems, retrofits, and custom ultrasonic cleaning applications
The Role of an Ultrasonic Generator
An ultrasonic generator is the power source of an ultrasonic cleaning system. It converts incoming electrical power into high-frequency electrical signals that drive ultrasonic transducers.
These signals determine how cavitation is generated within the cleaning tank, directly influencing cleaning performance.
Without a properly specified generator, even a well-designed ultrasonic system cannot achieve consistent or effective results.
How Ultrasonic Generators Work
Ultrasonic generators take standard electrical input and transform it into controlled high-frequency output.
This output is delivered to ultrasonic transducers, which convert the electrical energy into mechanical vibrations that create cavitation in the cleaning solution.
Key functions of an ultrasonic generator include:
- Converting electrical power into high-frequency signals
- Controlling frequency and power output
- Managing waveform characteristics
- Supporting system stability and efficiency
Advanced generators also include features that enhance cleaning performance and protect system components.
Key Features That Impact Cleaning Performance
Modern ultrasonic generators include several important features that influence cleaning effectiveness.
Frequency Control
- Determines the size and intensity of cavitation bubbles
- Lower frequencies provide more aggressive cleaning
- Higher frequencies support precision cleaning applications
Power Output
- Controls the intensity of cavitation
- Must be matched to tank size, part load, and contamination level
- Too little power reduces cleaning effectiveness; too much can damage parts
Frequency Sweep
- Slightly varies the operating frequency during operation
- Prevents standing waves and uneven cavitation
- Improves uniformity across the tank
Modulation and Control
- Allows tuning of ultrasonic output for specific applications
- Helps optimize cleaning for different part types and contaminants
The Relationship Between Generators and Transducers
Ultrasonic generators and transducers must function as a matched system.
The generator provides the electrical signal, while the transducer converts it into mechanical motion.
Proper matching ensures:
- Efficient energy transfer
- Consistent cavitation throughout the tank
- Reduced wear on system components
- Stable and repeatable cleaning performance
Mismatched components can lead to inefficiency, uneven cleaning, and premature equipment failure.
Types of Ultrasonic Generators
Blackstone-NEY offers advanced ultrasonic generator technologies designed for a range of industrial applications.

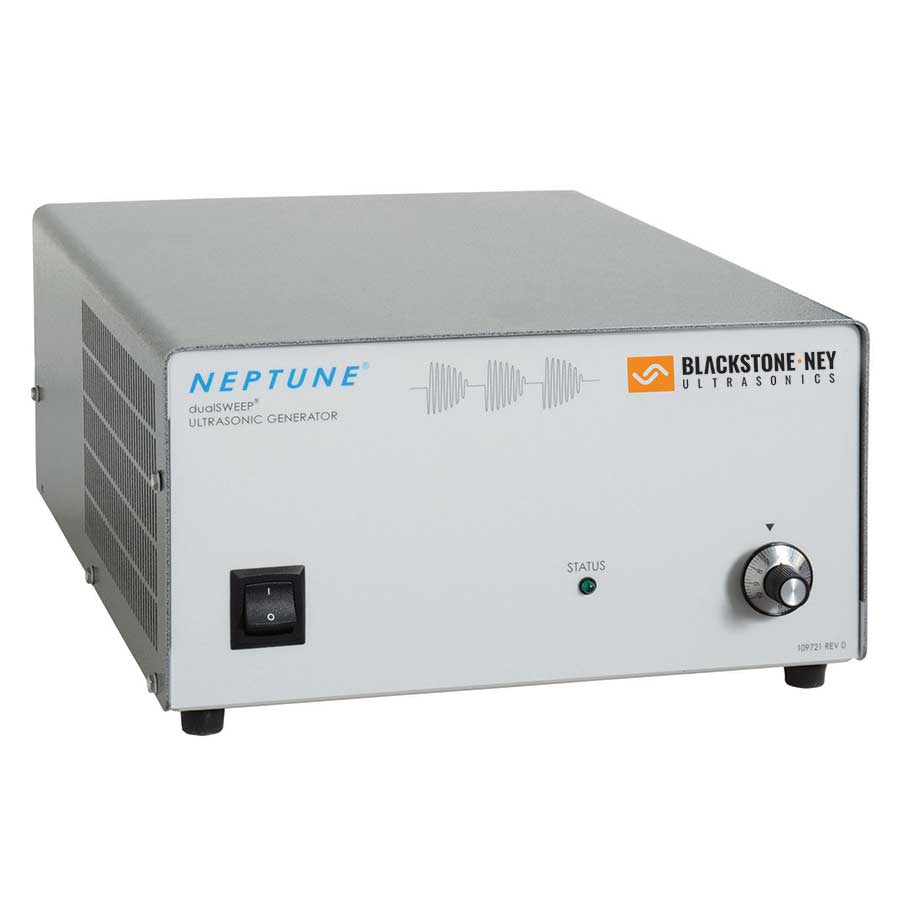

Neptune® D ultrasonic generator
Designed for:
- Reliable, high-performance ultrasonic cleaning
- Industrial applications requiring consistent output
- Systems where durability and stability are critical

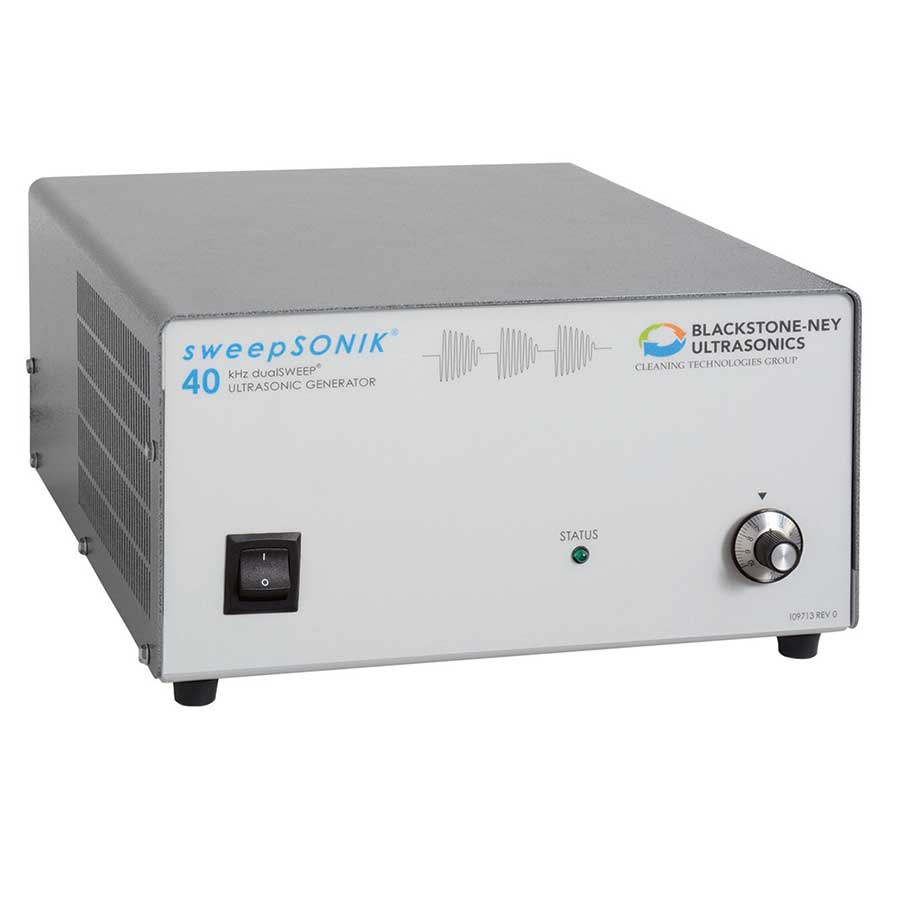

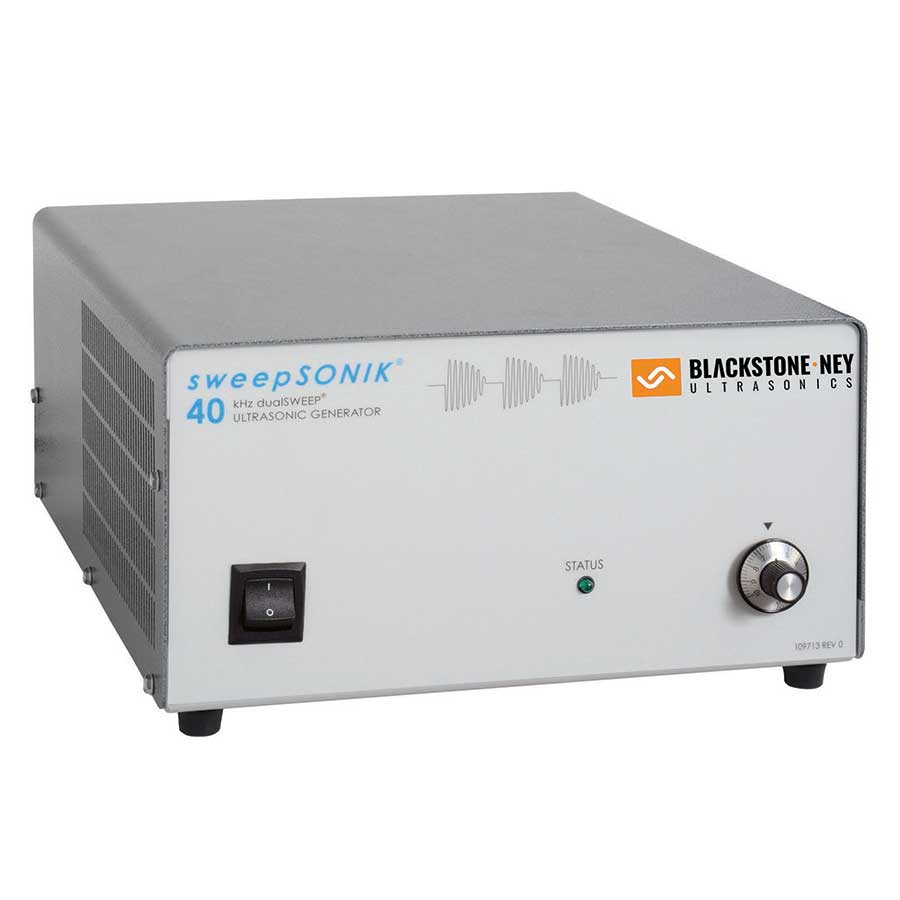

sweepSONIK®3 ultrasonic generator
Designed for:
- Enhanced cavitation uniformity through frequency sweep
- Applications requiring improved cleaning consistency
- Systems with complex part geometries

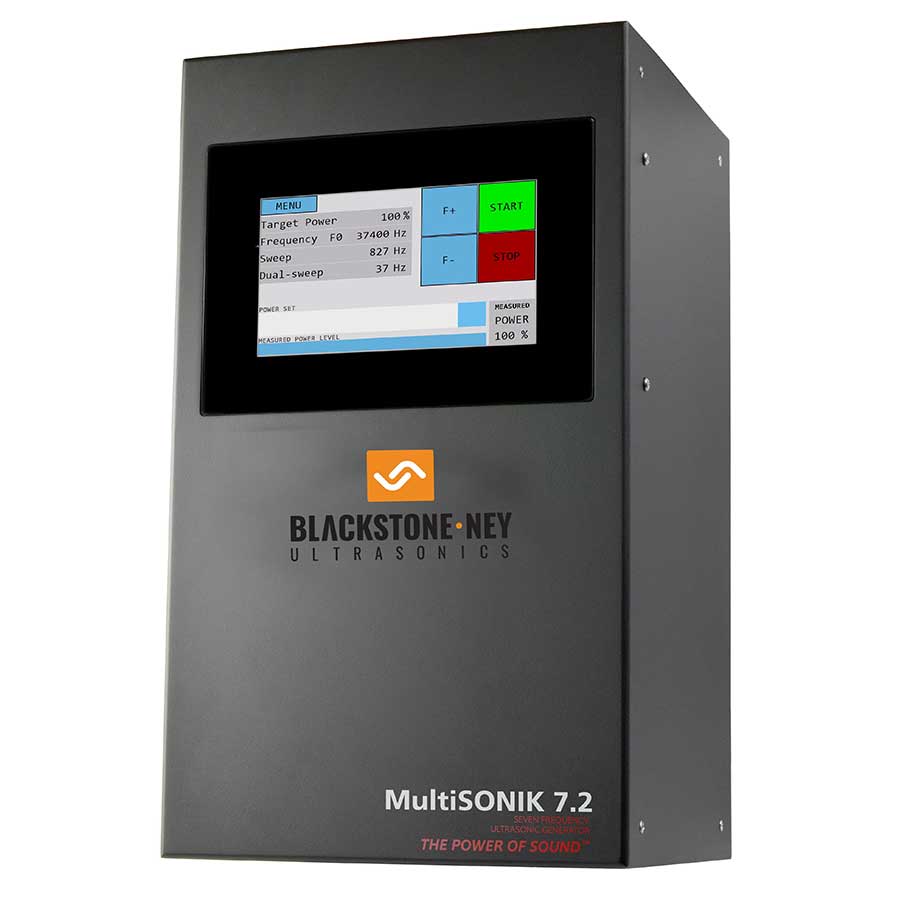

multiSONIK® ultrasonic generator
Designed for:
- Multi-frequency operation
- Flexible cleaning for different part types
- Advanced process control in precision applications
Frequency Selection: Matching the Application
Choosing the correct frequency is critical to achieving the desired cleaning results.
- 20–40 kHz: Aggressive cleaning for heavy contamination
- 40–68 kHz: General-purpose cleaning
- 68 kHz and above: Precision cleaning for delicate components
In many applications, multi-frequency systems provide flexibility to handle a range of cleaning requirements.
Generator Selection Considerations
Selecting the right ultrasonic generator requires evaluating several factors:
- Tank size and configuration
- Number and type of transducers
- Type of contamination
- Required cleaning aggressiveness
- Process repeatability and validation needs
- Integration with existing systems
A properly specified generator ensures optimal performance and long-term reliability.
Common Issues and Troubleshooting
Improper generator selection or operation can lead to performance issues.
Common problems include:
- Uneven cleaning due to poor frequency control
- Insufficient cavitation from low power output
- Overheating or system instability
- Mismatch between generator and transducers
Addressing these issues often involves system tuning, proper component matching, and routine maintenance.
Applications for Ultrasonic Generators
Ultrasonic generators are used across a wide range of industries:
- Aerospace component cleaning
- Medical device manufacturing
- Electronics and circuit board cleaning
- General machining and parts cleaning
- Optics and delicate surface cleaning
Their versatility makes them a critical component in both standard and custom ultrasonic cleaning systems.
Frequently Asked Questions
What does an ultrasonic generator do?
An ultrasonic generator converts electrical power into high-frequency signals that drive transducers to create cavitation for cleaning.
How do I choose the right ultrasonic generator?
Selection depends on tank size, transducer configuration, contamination type, and required cleaning performance.
What is frequency sweep in an ultrasonic generator?
Frequency sweep slightly varies the operating frequency to improve cavitation uniformity and eliminate dead zones.
Can one generator support multiple frequencies?
Yes, multi-frequency generators allow flexibility for cleaning different types of parts and contaminants.
What happens if the generator and transducers are not matched?
Mismatch can reduce efficiency, create uneven cleaning, and lead to premature equipment wear.
How long do ultrasonic generators last?
With proper use and maintenance, ultrasonic generators are designed for long service life in industrial environments.
How Blackstone-NEY Supports Generator Selection and Integration
Choosing the right ultrasonic generator is essential to system performance.
Blackstone-NEY works with manufacturers to:
- Evaluate cleaning requirements and system design
- Recommend the appropriate generator technology
- Ensure compatibility with transducers and system components
- Optimize frequency, power, and control parameters
- Support new installations, retrofits, and custom systems
Contact the Blackstone-NEY team to discuss your application and determine the right ultrasonic generator solution for your process.
